Lead-Lined X-Ray Doors Diagnostic imaging rooms
Lead Core Doors Technical construction specs
Radiation Protection Doors Hospitals, labs, airports
Shielded Access Panels Smaller, equipment-sized openings

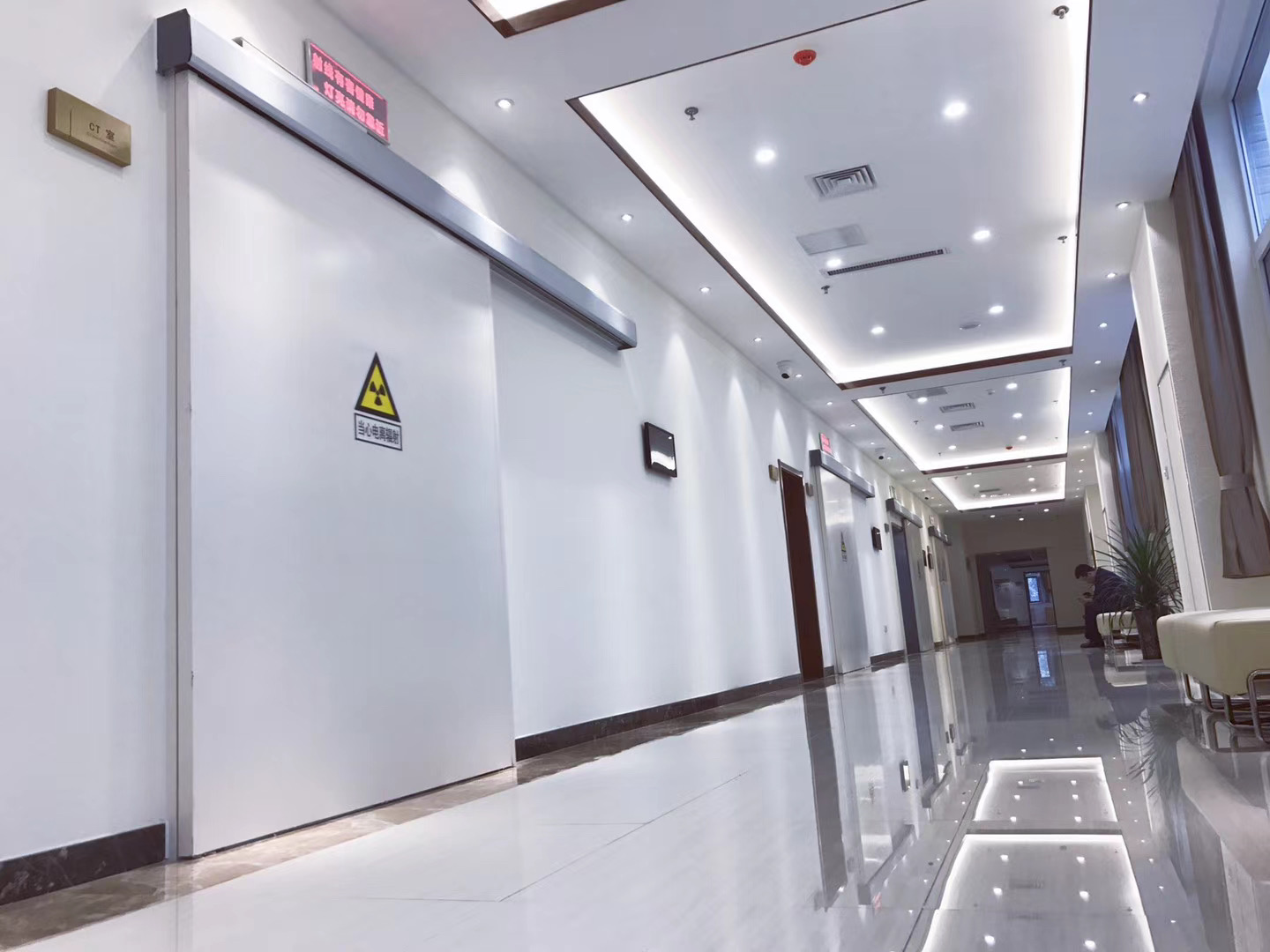

Lead Sliding Doors Automatic or manual wide-opening entryways
📦 Product Specifications Overview
Feature Details
Lead Thickness (Core) 1/32″ to 1/8″ (customizable per shielding requirements)
Door Core Options Solid wood core with lead insert, metal honeycomb core with lead
Outer Skin Options Galvanized steel, stainless steel, laminated HPL, powder-coated steel
Door Thickness 45–55 mm typical
Vision Panel Optional lead glass window (0.5 mm–3.0 mm Pb equivalent)
Frame Construction Welded steel frame with integral lead sheet
Opening Types Swing (single/double), Sliding (manual/auto), Bi-parting options
Fire Rating (Optional) Up to 90 minutes (UL or local cert standards)
Finishing Options Antibacterial, wood grain, whiteboard laminate, RAL custom colors
Standards Met ASTM F2007, NCRP 147, IEC/EN 61331, and regional building codes
🏗️ Where These Doors Are Commonly Used
Industry Location Type
Medical Facilities X-ray, CT, PET/CT, fluoroscopy, MRI shielding entryways
Dental & Veterinary Dental X-ray rooms, animal imaging stations
Industrial NDT Labs Non-destructive testing bays, inspection lines
Airports & Customs Cargo inspection & screening areas
Research Institutes Radiation labs, isotope storage rooms
Nuclear & Energy Control areas, reactor entrances, hot cell access
🧰 Customization Options Available
- Extra-wide frames for hospital gurneys or lab carts
- Motorized auto-sliding doors for sterile or high-traffic areas
- Integrated interlocks for radiation-safe entry systems
- Touchless sensors for hygiene-controlled rooms
- Fire-rated and lead-rated combo builds
🚛 Logistics & Installation Notes
Category Details
Packaging Export-grade crates, foam padding, reinforced corners
Shipping Options Sea or air freight, with optional door-to-site service
Installation Method Pre-hung units or knock-down sets (with installation manual)
Documentation CAD drawing, material certificates, test reports included
Support Online consultation, door schedules, site-specific advice
🏢 Why Work with Risdom Tech?
We don’t just sell lead lined doors — we support the full shielding system design. Whether you’re quoting a single X-ray room or supplying doors for a national healthcare project, we work with your specs, deadlines, and compliance regulations. Our team understands both the engineering side and the real-world install side.
📬 Ready to Discuss Your Project?
📧 Email us at: 4118@88.com
📄 Technical sheets available upon request
🛒 Fast quotes for architects, distributors, and contractors
🌍 Shipping worldwide from Asia
